DIY Building a Stirling Engine Bike

Advertisemen

A Stirling engine is a heat engine that is operated by the cyclic expansion and contraction of air or other gas (the working fluid) by exposing it to different temperatures, resulting in a net conversion of heat energy to mechanical work.

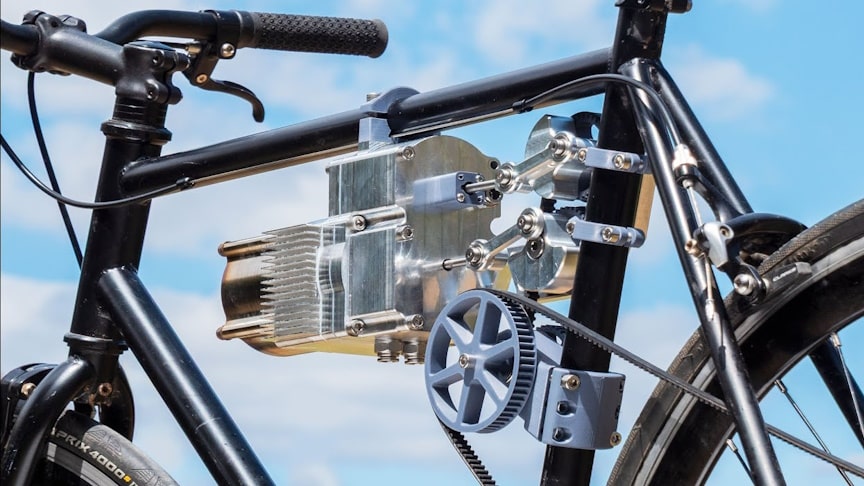

source.image: Tom Stanton

In this video youtube engineer Tom Stanton is building an engine to power a bicycle, his target power output for his bike engine is 150 watts (which is enough power to cycle at about about 24 km/h. Tom uses a 3D print machine to pring the various parts for his bike engine. He uses myriad materials including aluminum and Teflon.

The Stirling engine is a closed-cycle regenerative heat engine, with a permanent gaseous working fluid. Closed-cycle, in this context, means a thermodynamic system in which the working fluid is permanently contained within the system.

Advertisement

Tom designed the engine with water cooling. Another stage is mounting the motor, cranks, crankshafts, and piston rods to a bicycle frame, not including transferring that power into the rear wheel. The cranks are connected with a belt and to an output shaft, which is in turn used to drive the rear wheel. e. It’s not the most efficient powertrain, but it’s still amazing how it works.
